네트워크 명령어 on Windows

해당명령어를 입력하기 위한 창을 엽니다.
시작 - 실행 - cmd

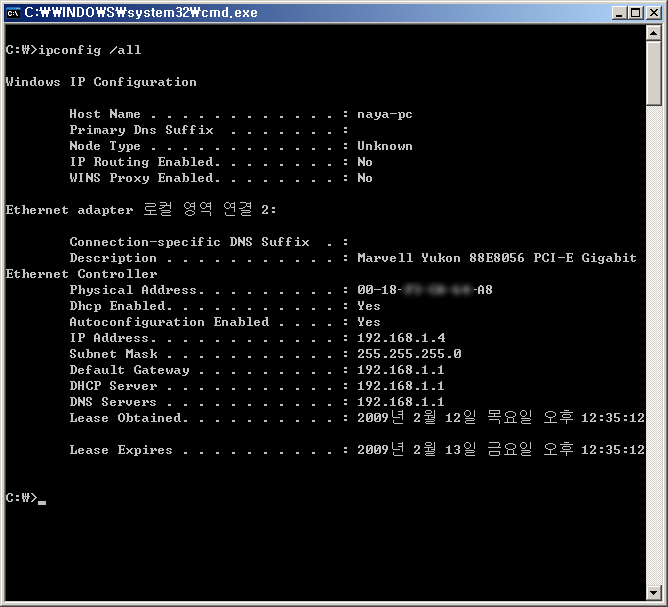

1. ipconfig

C:\>ipconfig /?

USAGE:
    ipconfig [/? | /all | /renew [adapter] | /release [adapter] |
              /flushdns | /displaydns | /registerdns |
              /showclassid adapter |
              /setclassid adapter [classid] ]

where
    adapter         Connection name
                   (wildcard characters * and ? allowed, see examples)

    Options:
       /?           Display this help message
       /all         Display full configuration information.
       /release     Release the IP address for the specified adapter.
       /renew       Renew the IP address for the specified adapter.
       /flushdns    Purges the DNS Resolver cache.
       /registerdns Refreshes all DHCP leases and re-registers DNS names
       /displaydns  Display the contents of the DNS Resolver Cache.
       /showclassid Displays all the dhcp class IDs allowed for adapter.
       /setclassid  Modifies the dhcp class id.

The default is to display only the IP address, subnet mask and
default gateway for each adapter bound to TCP/IP.

For Release and Renew, if no adapter name is specified, then the IP address
leases for all adapters bound to TCP/IP will be released or renewed.

For Setclassid, if no ClassId is specified, then the ClassId is removed.

Examples:
    > ipconfig                   ... Show information.
    > ipconfig /all              ... Show detailed information
    > ipconfig /renew            ... renew all adapters
    > ipconfig /renew EL*        ... renew any connection that has its
                                     name starting with EL
    > ipconfig /release *Con*    ... release all matching connections,
                                     eg. "Local Area Connection 1" or
                                         "Local Area Connection 2"

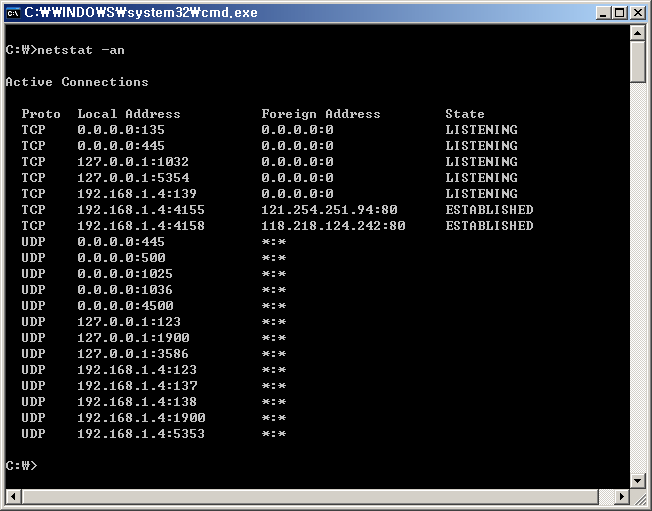

2. netstat

C:\>netstat /?

프로토콜 통계 및 현재 TCP/IP 네트워크 연결을 표시합니다.

NETSTAT [-a] [-b] [-e] [-n] [-o] [-p 프로토콜] [-r] [-s] [-v] [시간]

  -a            모든 연결 및 수신 대기 포트를 표시합니다.
  -b            각 연결 또는 수신 대기 포트를 만드는 데 관련된 실행 프로그램을
                표시합니다. 잘 알려진 실행 프로그램에서 여러 독립 구성 요소를
                호스팅하는 경우에는 연결 또는 수신 대기 포트를 만드는 데
                관련된 구성 요소의 시퀀스가 표시됩니다. 이런 경우에는
                실행 프로그램 이름이 아래쪽 대괄호 안에 표시되어 있고 위에는
                TCP/IP에 도달할 때까지 호출된 구성 요소가 표시되어 있습니다.
                이 옵션은 시간이 오래 걸릴 수 있으며 사용 권한이 없으면
                실패합니다.
  -e            이더넷 통계를 표시합니다. 이 옵션은 -s 옵션과 같이 사용될
                수 있습니다.
  -n            주소 및 포트 번호를 숫자 형식으로 표시합니다.
  -o            각 연결의 소유자 프로세스 ID를 표시합니다.
  -p 프로토콜   지정한 프로토콜에 해당되는 연결을 표시합니다. 프로토콜은
                TCP, UDP, TCPv6 또는 UDPv6 중 하나입니다. -s 옵션과 함께
                사용하여 프로토콜별 통계를 표시할 경우 프로토콜은 IP, IPv6,
                ICMP, ICMPv6, TCP, TCPv6, UDP 또는 UDPv6 중 하나입니다.
  -r            라우팅 테이블을 표시합니다.
  -s            프로토콜별로 통계를 표시합니다. 기본값으로 IP, IPv6, ICMP,
                ICMPv6, TCP, TCPv6, UDP 및 UDPv6에 관한 통계를 표시합니다.
                -p 옵션을 함께 사용하면 기본값의 일부 집합에 대한 통계만
                표시할 수 있습니다.
  -v            -b 옵션과 함께 사용하면 모든 실행 프로그램에 대한 연결
                또는 수신 대기 포트를 만드는 데 관련된 구성 요소의 시퀀스를
                표시합니다.
  시간          다음 화면으로 이동하기 전에 지정한 시간 동안 선택한 통계를
                다시 표시합니다. 통계 표시를 중단하려면 CTRL+C를 누르십시오.
                지정하지 않으면 현재 구성 정보를 한 번 표시합니다.

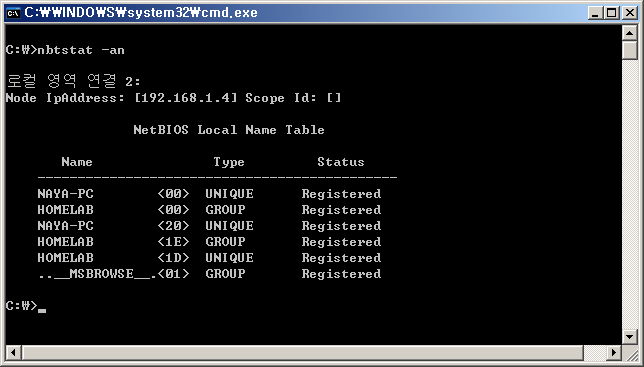

3. nbtstat

C:\>nbtstat /?

Displays protocol statistics and current TCP/IP connections using NBT
(NetBIOS over TCP/IP).

NBTSTAT [ [-a RemoteName] [-A IP address] [-c] [-n]
        [-r] [-R] [-RR] [-s] [-S] [interval] ]

  -a   (adapter status) Lists the remote machine's name table given its name
  -A   (Adapter status) Lists the remote machine's name table given its
                        IP address.
  -c   (cache)          Lists NBT's cache of remote [machine] names and their IP
 addresses
  -n   (names)          Lists local NetBIOS names.
  -r   (resolved)       Lists names resolved by broadcast and via WINS
  -R   (Reload)         Purges and reloads the remote cache name table
  -S   (Sessions)       Lists sessions table with the destination IP addresses
  -s   (sessions)       Lists sessions table converting destination IP
                        addresses to computer NETBIOS names.
  -RR  (ReleaseRefresh) Sends Name Release packets to WINS and then, starts Refr
esh

  RemoteName   Remote host machine name.
  IP address   Dotted decimal representation of the IP address.
  interval     Redisplays selected statistics, pausing interval seconds
               between each display. Press Ctrl+C to stop redisplaying
               statistics.

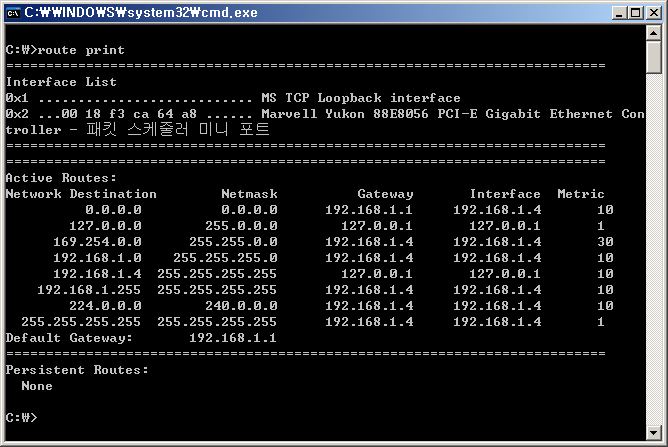

4. route

C:\>route /?

Manipulates network routing tables.

ROUTE [-f] [-p] [command [destination]
                  [MASK netmask]  [gateway] [METRIC metric]  [IF interface]

  -f           Clears the routing tables of all gateway entries.  If this is
               used in conjunction with one of the commands, the tables are
               cleared prior to running the command.
  -p           When used with the ADD command, makes a route persistent across
               boots of the system. By default, routes are not preserved
               when the system is restarted. Ignored for all other commands,
               which always affect the appropriate persistent routes. This
               option is not supported in Windows 95.
  command      One of these:
                 PRINT     Prints  a route
                 ADD       Adds    a route
                 DELETE    Deletes a route
                 CHANGE    Modifies an existing route
  destination  Specifies the host.
  MASK         Specifies that the next parameter is the 'netmask' value.
  netmask      Specifies a subnet mask value for this route entry.
               If not specified, it defaults to 255.255.255.255.
  gateway      Specifies gateway.
  interface    the interface number for the specified route.
  METRIC       specifies the metric, ie. cost for the destination.

All symbolic names used for destination are looked up in the network database
file NETWORKS. The symbolic names for gateway are looked up in the host name
database file HOSTS.

If the command is PRINT or DELETE. Destination or gateway can be a wildcard,
(wildcard is specified as a star '*'), or the gateway argument may be omitted.

If Dest contains a * or ?, it is treated as a shell pattern, and only
matching destination routes are printed. The '*' matches any string,
and '?' matches any one char. Examples: 157.*.1, 157.*, 127.*, *224*.
Diagnostic Notes:
    Invalid MASK generates an error, that is when (DEST & MASK) != DEST.
    Example> route ADD 157.0.0.0 MASK 155.0.0.0 157.55.80.1 IF 1
             The route addition failed: The specified mask parameter is invalid.
 (Destination & Mask) != Destination.

Examples:

    > route PRINT
    > route ADD 157.0.0.0 MASK 255.0.0.0  157.55.80.1 METRIC 3 IF 2
             destination^      ^mask      ^gateway     metric^    ^
                                                         Interface^
      If IF is not given, it tries to find the best interface for a given
      gateway.
    > route PRINT
    > route PRINT 157*          .... Only prints those matching 157*
    > route CHANGE 157.0.0.0 MASK 255.0.0.0 157.55.80.5 METRIC 2 IF 2

      CHANGE is used to modify gateway and/or metric only.
    > route PRINT
    > route DELETE 157.0.0.0
    > route PRINT

5. net

C:\>net /?
이 명령에 대한 구문:

NET [ ACCOUNTS | COMPUTER | CONFIG | CONTINUE | FILE | GROUP | HELP |
      HELPMSG | LOCALGROUP | NAME | PAUSE | PRINT | SEND | SESSION |
      SHARE | START | STATISTICS | STOP | TIME | USE | USER | VIEW ]

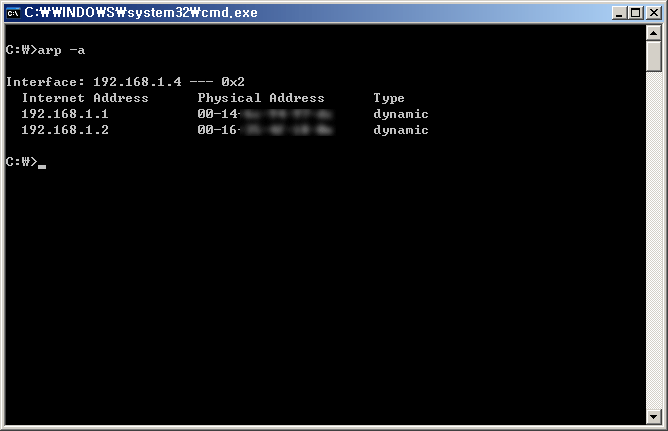

6. arp

C:\>arp /?

Displays and modifies the IP-to-Physical address translation tables used by
address resolution protocol (ARP).

ARP -s inet_addr eth_addr [if_addr]
ARP -d inet_addr [if_addr]
ARP -a [inet_addr] [-N if_addr]

  -a            Displays current ARP entries by interrogating the current
                protocol data.  If inet_addr is specified, the IP and Physical
                addresses for only the specified computer are displayed.  If
                more than one network interface uses ARP, entries for each ARP
                table are displayed.
  -g            Same as -a.
  inet_addr     Specifies an internet address.
  -N if_addr    Displays the ARP entries for the network interface specified
                by if_addr.
  -d            Deletes the host specified by inet_addr. inet_addr may be
                wildcarded with * to delete all hosts.
  -s            Adds the host and associates the Internet address inet_addr
                with the Physical address eth_addr.  The Physical address is
                given as 6 hexadecimal bytes separated by hyphens. The entry
                is permanent.
  eth_addr      Specifies a physical address.
  if_addr       If present, this specifies the Internet address of the
                interface whose address translation table should be modified.
                If not present, the first applicable interface will be used.
Example:
  > arp -s 157.55.85.212   00-aa-00-62-c6-09  .... Adds a static entry.
  > arp -a                                    .... Displays the arp table.

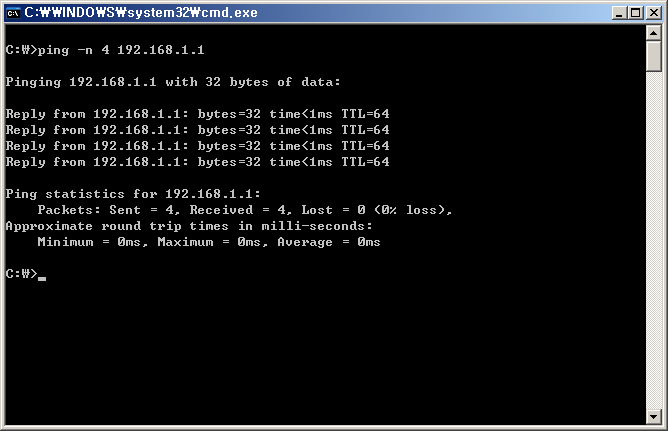

7. ping

C:\>ping /?

Usage: ping [-t] [-a] [-n count] [-l size] [-f] [-i TTL] [-v TOS]
            [-r count] [-s count] [[-j host-list] | [-k host-list]]
            [-w timeout] target_name

Options:
    -t             Ping the specified host until stopped.
                   To see statistics and continue - type Control-Break;
                   To stop - type Control-C.
    -a             Resolve addresses to hostnames.
    -n count       Number of echo requests to send.
    -l size        Send buffer size.
    -f             Set Don't Fragment flag in packet.
    -i TTL         Time To Live.
    -v TOS         Type Of Service.
    -r count       Record route for count hops.
    -s count       Timestamp for count hops.
    -j host-list   Loose source route along host-list.
    -k host-list   Strict source route along host-list.
    -w timeout     Timeout in milliseconds to wait for each reply.

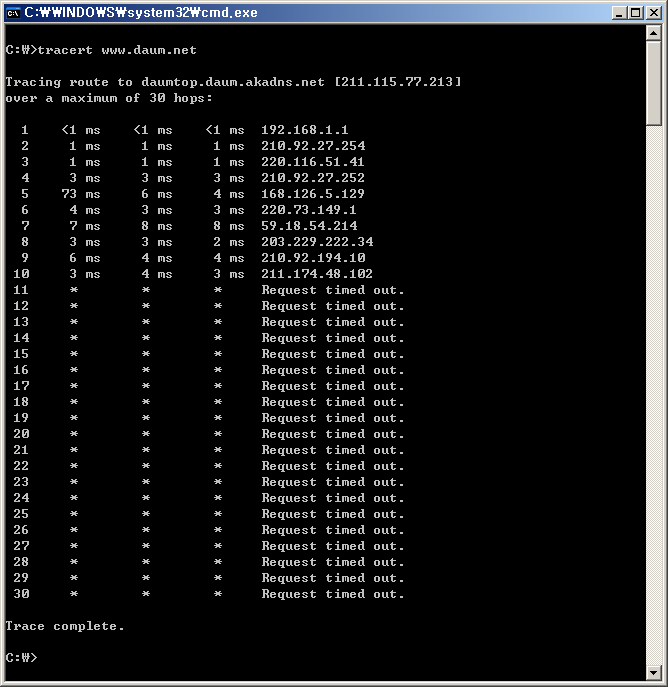

8. tracert

C:\>tracert /?

Usage: tracert [-d] [-h maximum_hops] [-j host-list] [-w timeout] target_name

Options:
    -d                 Do not resolve addresses to hostnames.
    -h maximum_hops    Maximum number of hops to search for target.
    -j host-list       Loose source route along host-list.
    -w timeout         Wait timeout milliseconds for each reply.

이상으로 간단하게 윈도우즈 DOS상의 네트워크 명령어를 살펴보았습니다.
net 명령어 같은 경우는 상당히 많은 쓰임새가 있기 때문에 좀 더 살펴볼 필요가 있는 분은
아래 블로그를 방문해도 좋을 것 같습니다.

http://blog.naver.com/romeo316?Redirect=Log&logNo=80004938194

-끝-
